Orange PI

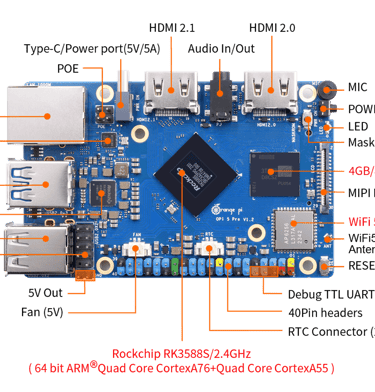

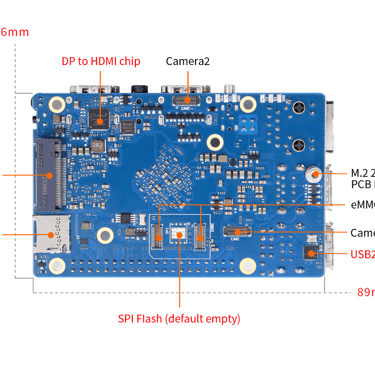

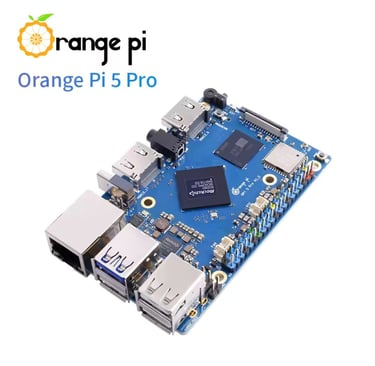

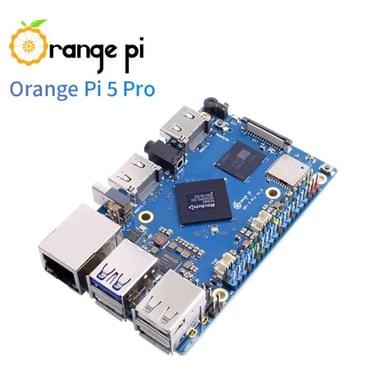

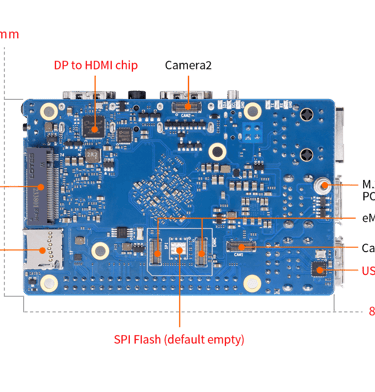

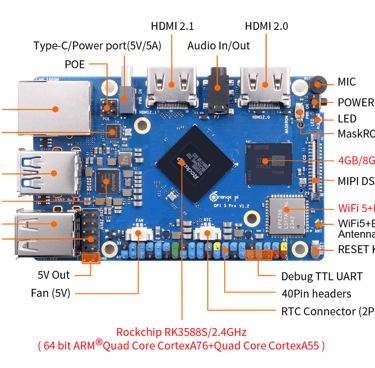

Orange PI 5 Pro CPU Rockchip RK3588S

8 Nucleos 64 bits 2.4GHz

ArmCortexA76+ArmCortexA55

GPU MALI G610

Ram LPDDR5 04/08/16

WI-FI 5 + Bluetooth 5.0

Gigabit Ethernet 10/100/1000

Armazenamento

EMMC/ NVME-M2 PCIe 2.0 /MICRO SD

HDMI 2.0 4k @60 FPS + HDMI 2.1 8K @60FPS

Supported OS Orangepi OS (Droid)

Orangepi OS (Arch) / Ubuntu

Debian / Android 12/ Android 13

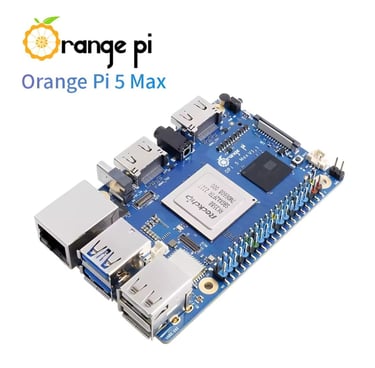

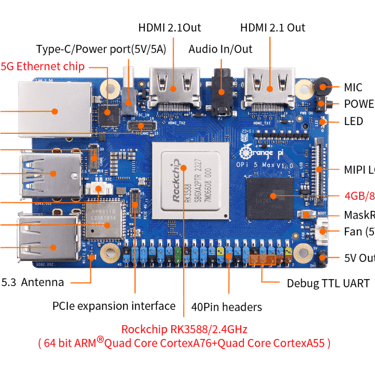

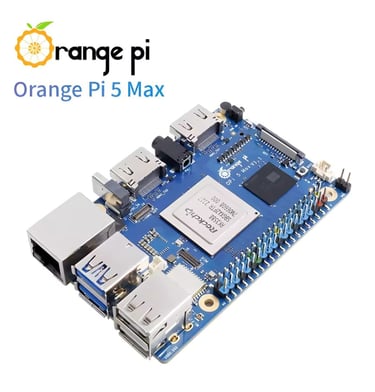

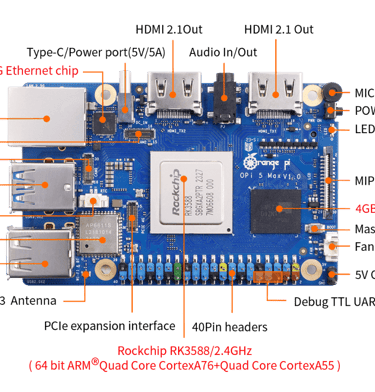

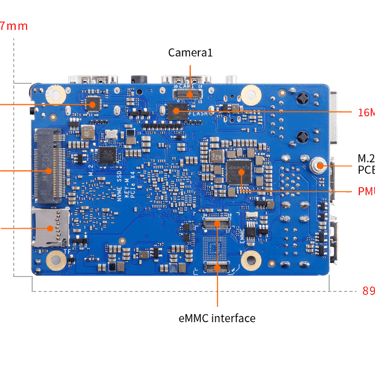

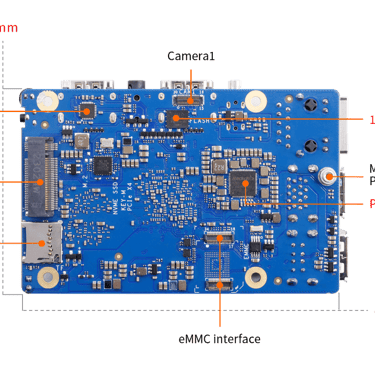

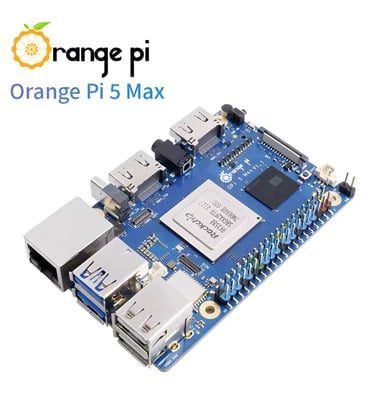

Orange PI 5 MAX CPU Rockchip RK3588

8 Nucleos 64 bits 2.4GHz

ArmCortexA76+ArmCortexA55

GPU MALI G610

Ram LPDDR5 04/08/16

WI-FI 6E + Bluetooth 5.3

2.5G Ethernet Chip

Armazenamento

EMMC/ NVME-M2 PCIe 3.0 /MICRO SD

HDMI 2.1 + HDMI 2.1 8k 60@FPS

Supported Orangepi OS（Droid）

Orangepi OS（Arch）Orangepi OS（OH）

Ubuntu、Debian、Android 13

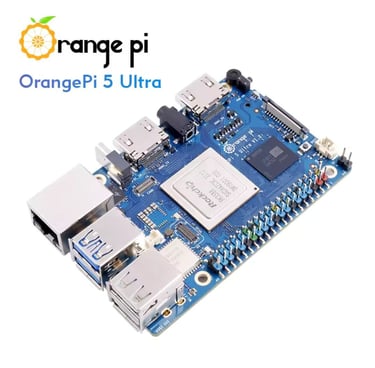

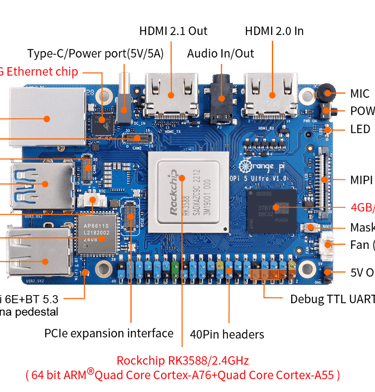

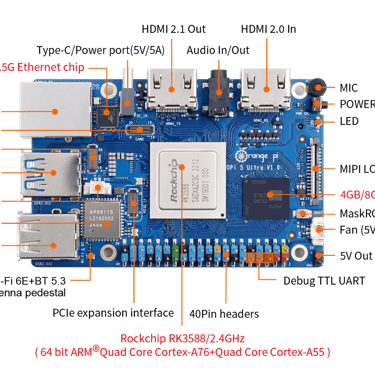

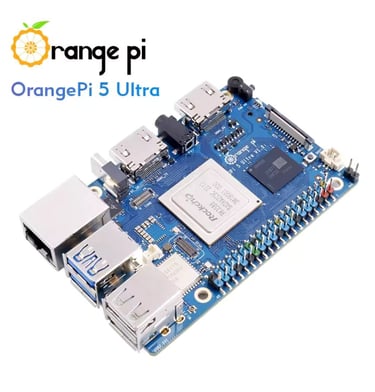

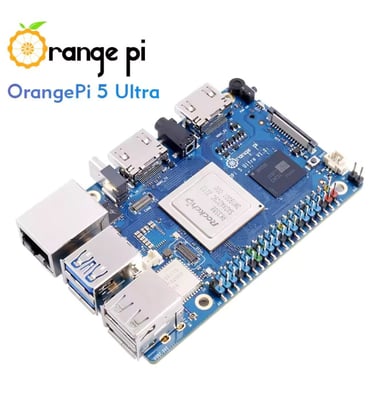

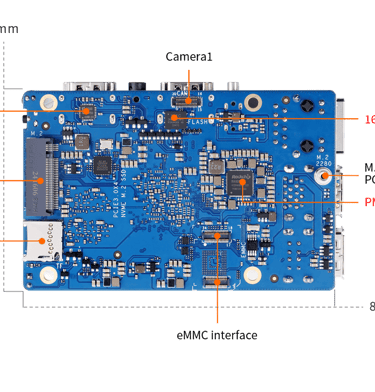

Orange PI 5 ULTRA CPU Rockchip RK3588

8 Nucleos 64 bits 2.4GHz

ArmCortexA76+ArmCortexA55

GPU MALI G610

Ram LPDDR5 04/08/16

WI-FI 6E + Bluetooth 5.3

2.5G Ethernet Chip

Armazenamento

EMMC / NVME-M2 PCIe 3.0 / MICRO SD

HDMI 2.0 4k @60FPS + HDMI 2.1 8k 60@FPS

Supported OS Orangepi OS（Droid）

Orangepi OS（Arch）Orangepi OS（OH）

Ubuntu、Debian、Android13

Site oficial Orange PI 5 Pro

Site oficial Orange PI 5 Max

Site oficial Orange PI 5 Ultra

Orange PI CM5 CPU Rockchip RK3588S

8 Nucleos 64 bits 2.4GHz

ArmCortexA76+ArmCortexA55

GPU MALI G610

Ram LPDDR4/4x 02/04/08/16

WI-FI 5 + Bluetooth 5.0 - Tablet Base Board

3 x Lan 1x Gigabit + 2x 2.5G - CM5 Base Board

Armazenamento Integrado CM5

EMMC 32/64/128/256

Micro SD

M2 NVME-PCIe 2.0 - Tablet Base Board

HDMI 2.1 8k 60@FPS

Supported OS Orangepi OS（Droid）

Orangepi OS（Arch）Orangepi OS（OH）

Ubuntu、Debian、Android13

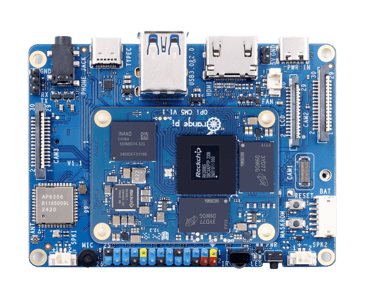

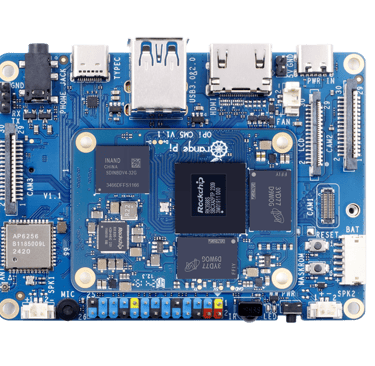

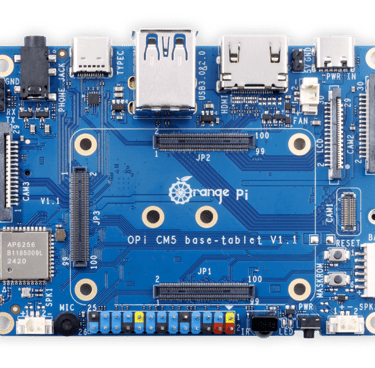

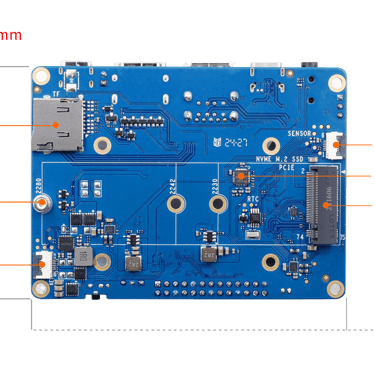

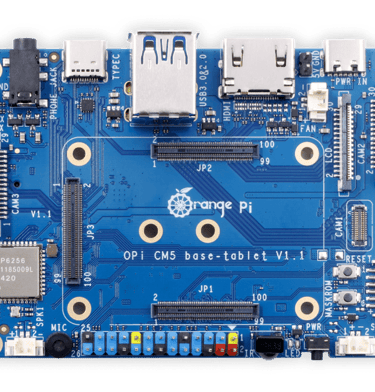

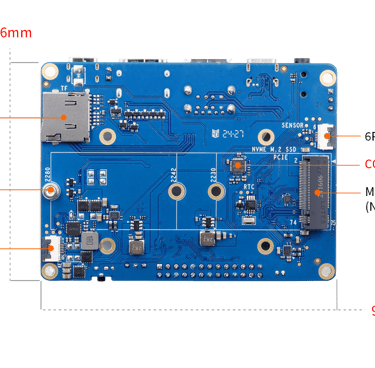

OrangePi CM5 Tablet Base Board + CPU

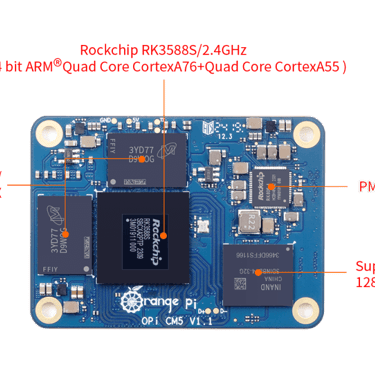

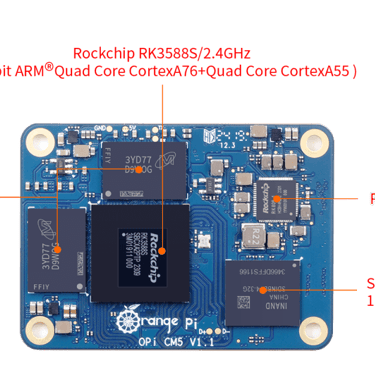

Informação Orange PI CM5:

Orange PI CM5 tem como modulo principal cpu+ram+armazenamento.

Modulo principal precisa da placa base e essa base possui 2 modelos diferentes:

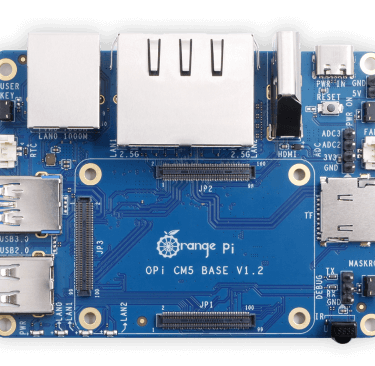

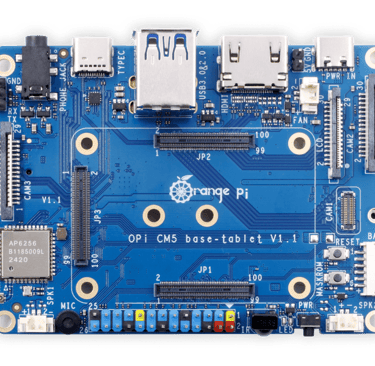

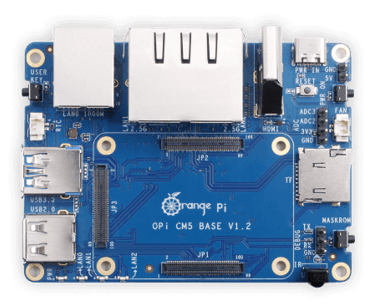

Tablet Base Board e CM5 Base Board.

Ambas vendidas separadamente.

Site oficial Orange PI CM5

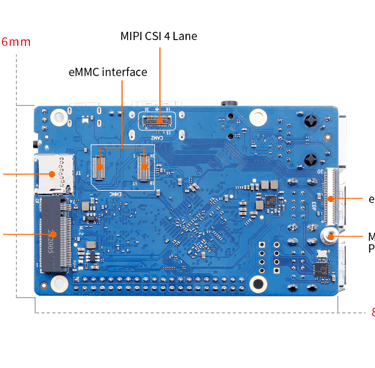

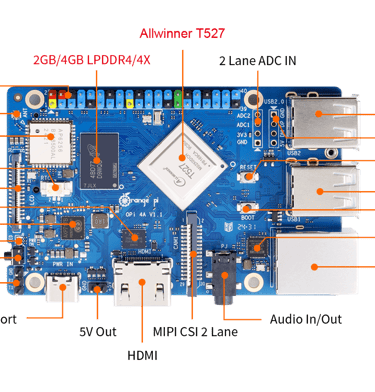

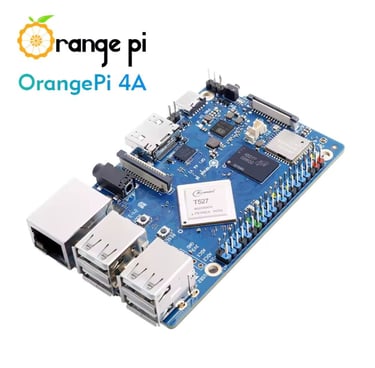

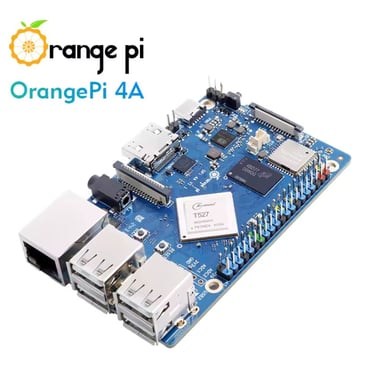

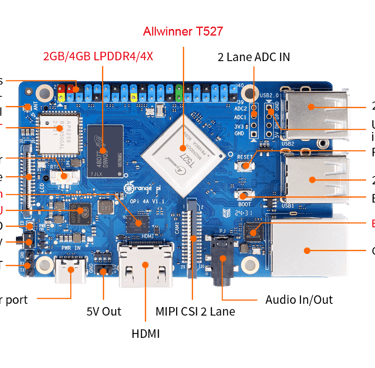

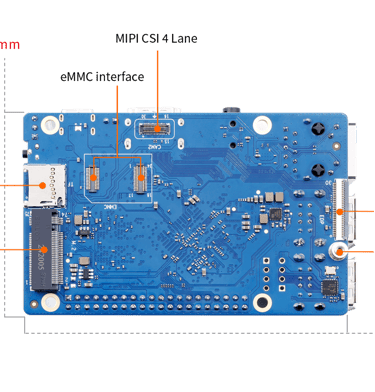

Orange PI 4A

Processador

Allwinner T527, 8-core ARM CortexTM-A55@1.8GHz
HIFI4 Audio DSP@600MHz
RISC-V@200MHz
GPU: G57 MC1
VPU:H.265 4K@60fps decoding, H.264 4K@60fps decoding, H.264 4K@25fps encoding
NPU:2TOPS

Memory LPDDR4/4X: 2GB/4GB

Storage eMMC module (optional)：16GB/32GB/64GB/128GB (optional)
SPI flash：128Mb(default)、256Mb (optional)
M.2 M-KEY socket：PCIe2.0 NVMe SSD
uSD card slot：supports up to 128GB uSD card

Wi-Fi + BluetoothWi-Fi + Bluetooth 2-in-1 module
Wi-Fi 5.0+BT 5.0, BLE

Ethernet 10/100/1000Mbps Ethernet

Display1* HDMI TX 2.0 interface up to 4K@60fps
1* 4-lane MIPI-DSI
1* eDP1.3

USB1*USB Type-A 2.0
3*USB Type-A 2.0 HOST
1*USB 2.0 HOST, reserved for customer expansionADCReserved 4Pin connector, can access 2-lane ADC, maximum input 1.8VAudio3.5mm headphone jack audio input/output

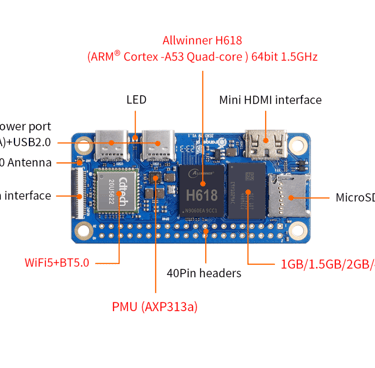

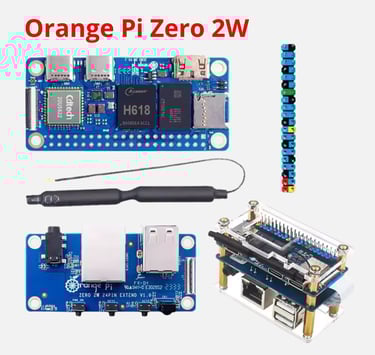

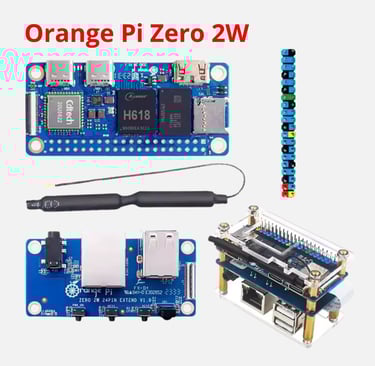

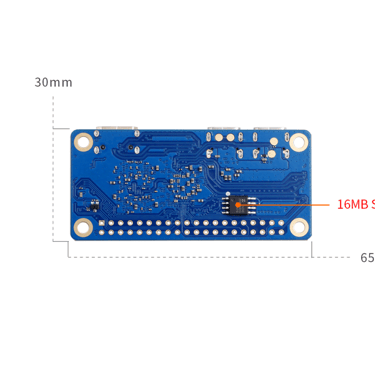

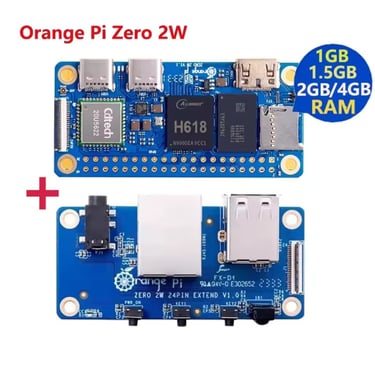

Orange PI Zero 2W

CPU Allwinner H618 Quad-Core 1.5GHz Cortex-A53 GPUMali G31 MP2
Support OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan (optional) MemoryRAM LPDDR4:1GB/1.5GB/2GB/4GB SPI Flash: 16MB Wi-Fi + BTWi-Fi5.0+BT 5.0 Video output1*Mini HDMI TX 2.0 port supporting 4K@60FPS USBType-C USB2.0*2 SD card interface1*Micro SD card interfaceExpansion interface24Pin expansion interface: USB2.0*2, 100M Ethernet interface, IR receiver interface, audio output, TV-out, power button, user-defined buttons*240Pin40Pin function expansion interface, supporting the following interface types:
GPIO、UART、I2C、SPI、PWMPower SourceType-C 5V2A Supported OS Android 12 TV，Debian11，Debian12，Ubuntu22.04，buntu20.04，Orange Pi OS（Arch） PCB Dimension30mm x 65mm x 1.2mmWeight12.5g

Site oficial Orange PI Zero 2W

Site oficial Orange PI 4A
